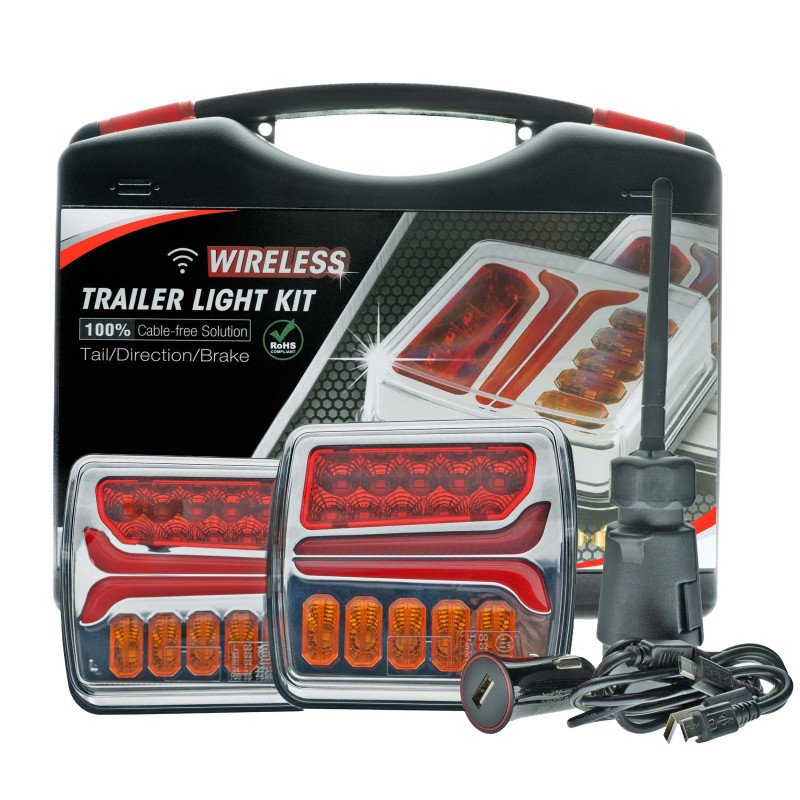

EPWLD50 Wireless rear LED lamp set 12–24V 5 functions

EPWLD50 – Wireless rear LED light kit 12–24V, 5 functions (tail / STOP / dynamic indicator / license plate light / reflector), magnetic mount EPWLD50 is a modern wireless rear LED light kit designed for trailers, tow trucks, and semi-trailers. Thanks to the strong magnetic mount, installation and removal are quick and easy. The transmitter connected to the vehicle’s 7-pin socket sends signals wirelessly via 2.4 GHz, eliminating the need for wiring. Communication range up to 30 m. The kit supports all essential rear lighting functions: tail light, STOP light, dynamic indicator, license plate illumination, and reflector. The lamps are powered by a 2600 mAh Li-ion 18650 battery, providing approximately 8 hours of operation. Charging via micro USB (5 V) takes about 2 hours. The hermetically sealed housing and IP67-rated lens ensure water and dust resistance in all working conditions. Function operation: – ON/OFF: short press turns the lamps on/off; after activation, the D5 LED indicates pairing and stays lit during operation. – Battery indicator: four LEDs show the charge level for about 15 seconds when the button is pressed. – License plate light (NPL): can be switched on/off separately by holding the button for 3 seconds. Technical specifications: Operating voltage: 12–24V DC Charging: 5V (micro USB) Battery capacity: 2600 mAh (Li-ion 18650) Operating time: approx. 8 h Charging time: approx. 2 h LED type: SMD 2835 LED power: tail – 1.55 W; indicator – 1.21 W; STOP – 0.67 W; license plate light – 1.55 W LED count (per lamp): tail – 14; indicator – 5; STOP – 10; license plate – 4 Communication: 2.4 GHz, range up to 30 m Protection rating: IP67 Operating temperature: −25°C ~ +65°C Lamp dimensions: 105 × 105 × 70 mm Case dimensions: 245 × 215 × 70 mm Lamp shape: square Functions: tail light, STOP, dynamic indicator, license plate light, reflector Approvals: – ECE R3 – reflector – ECE R6 – indicator – ECE R7 – tail/STOP light – ECE R23 – license plate light – EMC R10 – electromagnetic compatibility (EMC) Certificates: CE, RoHS, REACH, UKCA Set includes: – two magnetic rear LED lamps – 7-pin transmitter – USB–micro USB charging cable – USB adapter for cigarette lighter socket – transport case Applications: – trailers and semi-trailers – tow trucks – transport and special vehicles
