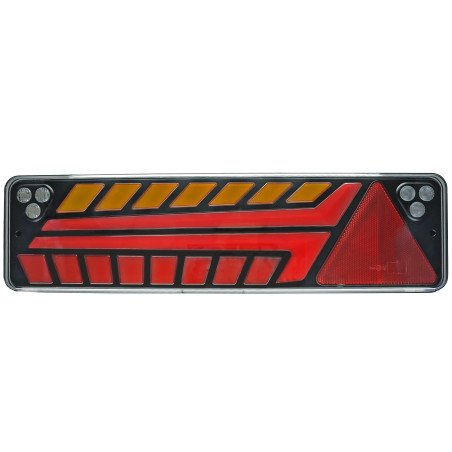

EPWLD38 Rear LED lamp 12–24V 6 functions left plug 7pin

EPWLD38 – LED rear combination lamp 12–24V, 6 functions (position / stop / dynamic indicator / reverse / rear fog / license plate), left, 7-pin plug connector EPWLD38 is a left-side LED rear combination lamp for vehicles with 12V and 24V systems, equipped with a 7-pin plug connector for quick installation and removal. It offers six light functions – position (NEON effect), stop, dynamic direction indicator, reverse, rear fog and license plate light. An integrated reflector provides excellent visibility and safety. A robust ABS housing and a polycarbonate (PC) lens protect the lamp against water, dust and mechanical damage. The high IP67 rating and ECE approvals allow legal road use throughout the European Union. Energy-efficient LED technology ensures low power consumption and long, trouble-free operation. Technical specification: Operating voltage: 12–24V DC LED power: position – 1.8 W, indicator – 5 W, stop – 12 W, reverse – 1.8 W, rear fog – 2 W, license plate – 1.5 W LED count: position – 78, indicator – 84, stop – 96, reverse – 3, rear fog – 3, license plate – 4 LED type: SMD 2835 (position, indicator, stop, license plate); SMD 3535 (reverse, rear fog) Reflector: yes (integrated, ECE R3) Housing material: ABS Lens material: polycarbonate (PC) Lamp dimensions: 520 × 146 × 65 mm Mounting hole spacing: 155 mm Ingress protection: IP67 Operating temperature: -40°C ~ +65°C Connection type: 7-pin plug connector Approvals: – ECE R3 – reflector – ECE R4 – license plate light – ECE R6 – direction indicator – ECE R7 – position and stop – ECE R23 – reverse – ECE R38 – rear fog – EMC R10 – electromagnetic compatibility (EMC) Certificates: CE, RoHS, REACH, UKCA Mounting side: left Units per pack: 1 In the box: – EPWLD38 LED rear combination lamp (left) with 7-pin plug connector Applications: – trailers and semitrailers – recovery trucks and construction machinery – agricultural and transport vehicles – vans and trucks
