This is a universal set of parking sensors that match each vehicle, provided that the car does not have an original installation or holes for sensors larger than the sensors offered.
During the reversing maneuver or rearward driving, the device correctly recognizes the obstacles on the road and warns the driver with a display and a sound signal - different colors / frequency of sound depending on the distance of the car from the obstacle.
After turning backward gear - automatically begins to detect all obstacles within a radius of 2.5 meters from the sensor assembly site, i.e. from the rear bumper.
Unscrewed sensors like those used for the first installation in serial cars. accelerates and facilitates is the installation process in the car. In case of damage to the sensor (e.g. bump) there is no need to remove the bumper - we take out the sensor, unscrew it and replace it.
The parking sensors set is made of the highest quality materials that will allow the device to use for many years. You will avoid many stressful situations thanks to it.
1. The oblique interior of the collar enables precise correction of the sensor angle relative to the ground. 2. The collar is made of strong plastic thanks to which it is only 1.5 mm thick (does not stand out from the column like other universal sensors) 3. The internal converter housing is made of aluminum
Control control panel:
1. Sensor 2. Sensor 3. Sensor 4. Sensor 5. Display 6. Power connector
connecting plug & amp; play significantly accelerates the assembly process.
In our control panel there are no additional ""inactive"" (not needed) inputs/connectors that may cause interference in the operation of the device.
Display:
1. Blue 2.5-1.6m 2. Green 1.5-1.1m 3. Yellow 1-0.4m 4. Red 0.3-0.0m 5. Distance indicator
Technical parameters of the set:
- Power supply: 12v DC
- power consumption: ~ 4w
- device operating temperature: -30 ° C to +80 ° C
- sensors ultrasonic frequency: 40 khz
- Measurement error: +/- 5cm
- permissible bumper angle: +/- 5 °
- aluminum transducer housing in the sensor
- approval: yes, e8 emc ( the only sensors on the market with such approval!)

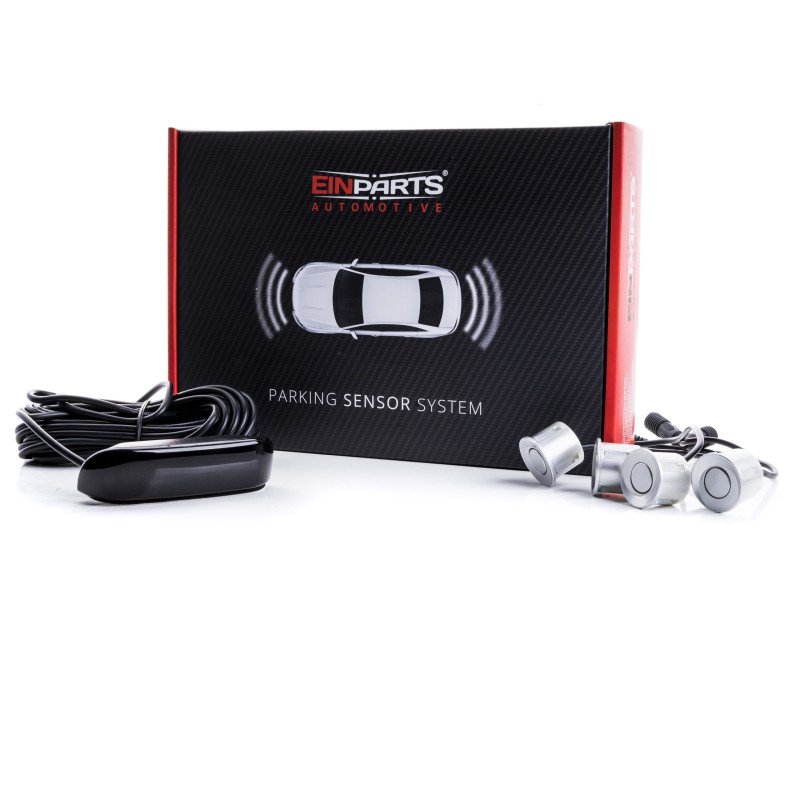

Included:
- display
- 4 sensors in size 25mm (outer diameter)
- control panel
- drill (22mm for sensors)
- necessary cabling
- user manual in Polish
Sensors in other color variants are available in our offers. Each of the sensors can also be replaced yourself in any color.
