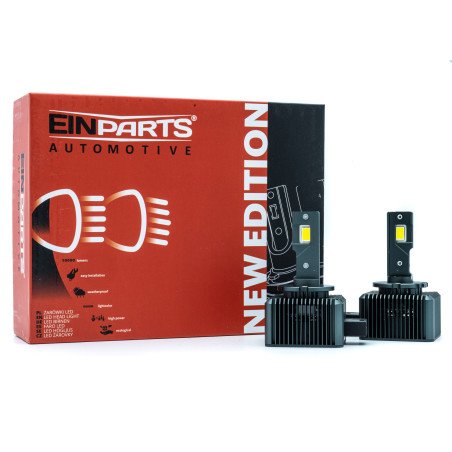

Lamp EPLH88

Advanced LED Technology For standard LED chips, a major issue in light extraction from the chip is the metal wires that cover part of the light-emitting surface. In classic LED diodes, losses associated with the traditional LED mounting method can reach 20%. This problem does not occur with flip-chip mounting, where gold wires are not used to connect the LED chips. The illustration simplifies the complex operation of the advanced flip chip system used in these bulbs. Benefits of Flip Chip Technology: - Compact size and reduced weight of bulbs - Generates much more light with a cooler color temperature - Excellent heat dissipation ensuring long lifespan (up to 60,000 hours of operation) - Shock and vibration resistance - Supports CAN BUS - The diodes are placed at the same height as the light source in a standard halogen bulb, thus achieving a so-called "cutoff," which prevents blinding other drivers. - Allows for the elimination of costly and large heat sinks, and greater freedom in designing lighting solutions. Technical Specifications: - Operating Voltage: 12V - 24V - Type: D1S - Type of Diodes: Flip Chip - Number of Diodes: 30 per bulb - Light Color: 6000k - cool white - Brightness: 6000 lm per bulb - Power: 40W - Can Bus: Yes - Removable Base: Yes - Operating Temperature: -40C to +50C - Base: PK32d-2
