EPWLR21 LED Lighting Control Panel 12/24V 4-channel

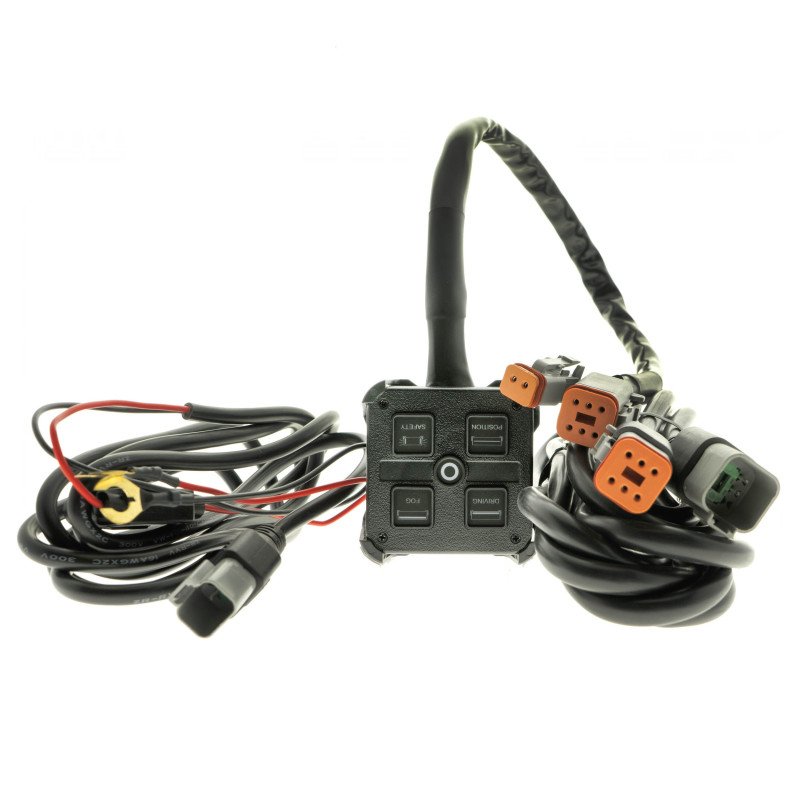

EPWLR21 LED Lighting Control Panel – 4-Function Switch The LED switch panel allows you to conveniently control four independent lighting functions from a single, centrally located controller. Ideal for installation in special vehicles, work machines, SUVs, or camper vans. Buttons labeled FOG / DRIVING / POSITION / SAFETY operate individual light sources (fog, driving beams, position lights, and warning lights) independently. An additional central master switch allows you to turn off all active functions at once with a single click. Each button is clearly labeled and backlit to ensure easy operation, even in low-light conditions. Technical specifications: Power supply: 12–36 V Maximum power: 100 W Maximum current: 8 A LED backlight: Yes Panel dimensions: 65 × 65 × 30 mm Cable length: approx. 30 cm Mounting: 3M tape or bracket Certification: ECE R10 (EMC) Included: 5-button control panel (DRIVING / FOG / POSITION / SAFETY + master switch) Deutsch DT 6‑pin extender (5 wires) approx. 312 cm Deutsch DT 2‑pin extender with 30 A fuse and ring terminals approx. 250 cm Panel mounting bracket (with screws)
