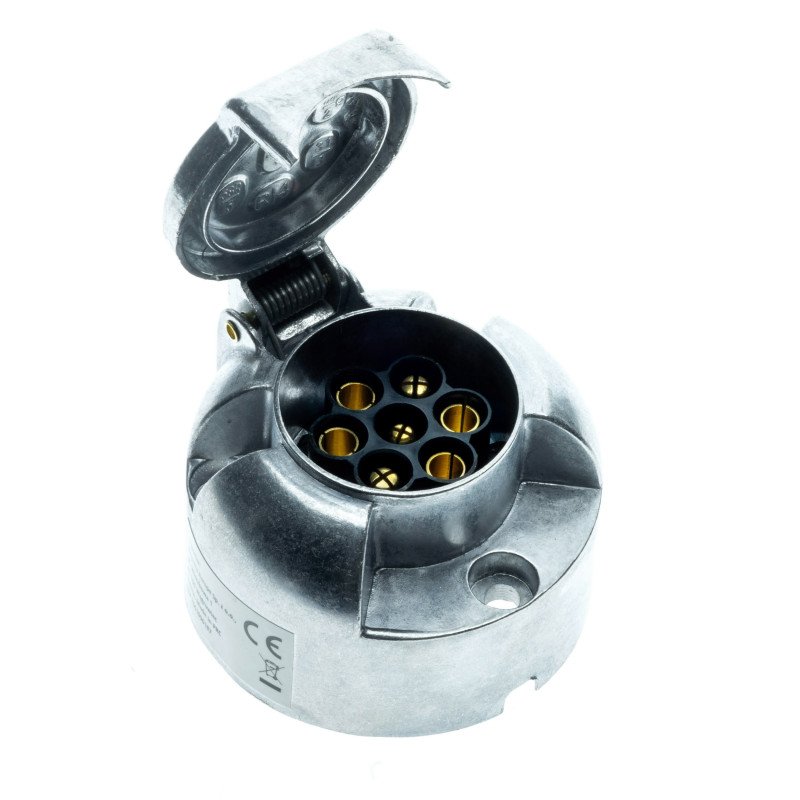

EPTA02 Trailer Socket 7-pin 12V – Aluminum

EPTA02 Trailer Socket 7-pin (Aluminum) Durable 7-pin electrical socket designed to connect the vehicle's electrical system with a trailer. The aluminum version provides increased resistance to weather conditions and mechanical damage. The 7-pin system is mainly intended for light trailers with a maximum permissible weight of up to 750 kg. Socket Diagram (Compliant with ISO 1724): Pin 1 (L) - Function: left turn signal - Wire: yellow Pin 2 (54G) - Function: fog lights - Wire: blue Pin 3 (31) - Function: ground - Wire: white Pin 4 (R) - Function: right turn signal - Wire: green Pin 5 (58R) - Function: right position lights - Wire: brown Pin 6 (54) - Function: brake lights - Wire: red Pin 7 (58L) - Function: left position lights - Wire: black Technical Specification: Type: 7-pin Standard: ISO 1724 Voltage: 12V Maximum Load: 16A Material: Aluminum Connectors: 4 round sockets (female) Ø5.5 mm, 3 round pins (male) Ø5.5 mm Mounting: 3 mounting holes Housing: Sealed, spring-loaded cover Application: Transport trailers, car transporters, caravans, agricultural machinery
